KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver with 3.3V Power Supply

KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX Ethernet Transceiver With RMII Support

Product Description Of KSZ8081RNDCA
KSZ8081RNDCA is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable.
KSZ8081RNDCA is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core, and by offering 1.8/2.5/3.3V digital I/O interface support.

Specifications Of KSZ8081RNDCA

Features Of KSZ8081RNDCA
Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
RMII v1.2 Interface Support with a 50 MHz Reference Clock Output to MAC, and an Option to Input a 50 MHz Reference Clock
RMII Back-to-Back Mode Support for a 100 Mbps Copper Repeater
MDC/MDIO Management Interface for PHY Register Configuration
Programmable Interrupt Output
LED Outputs for Link and Activity Status Indication
On-Chip Termination Resistors for the Differential Pairs
Baseline Wander Correction
HP Auto MDI/MDI-X to Reliably Detect and Correct Straight-Through and Crossover Cable Connections with Disable and Enable Option
Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100 Mbps) and Duplex (Half/Full)
Power-Down and Power-Saving Modes
LinkMD® TDR-Based Cable Diagnostics to Identify Faulty Copper Cabling
Parametric NAND Tree Support for Fault Detection Between Chip I/Os and the Board
HBM ESD Rating (6 kV)
Loopback Modes for Diagnostics
Single 3.3V Power Supply with VDD I/O Options for 1.8V, 2.5V, or 3.3V
Built-In 1.2V Regulator for Core
Available in 24-pin 4 mm x 4 mm QFN Package

Applications Of KSZ8081RNDCA
Game Consoles
IP Phones
IP Set-Top Boxes
IP TVs
LOM
Printers

Other Electronic Components In Stock

FAQ

Q: Are your products original?

A: Yes, all products are original, new original import is our purpose.

Q:Which Certificates do you have?

A:We are ISO 9001:2015 Certified Company and member of ERAI.

Q:Can you support small quantity order or sample?Is the sample free?

A:Yes,we support sample order and small order.Sample cost is different according to your order or project.

Q:How to ship my order? Is it safe?

A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

Q:What about the lead time?

A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.

10BASE-T/100BASE-TX Ethernet IC

IEEE 802.3 Compliant Ethernet Transceiver

3.3V Power Supply PHY Transceiver

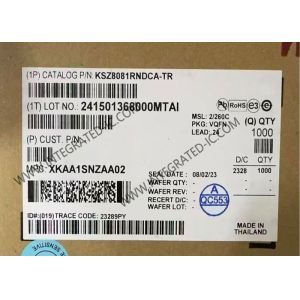

KSZ8081RNDCA Ethernet IC Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver with 3.3V Power Supply Images
